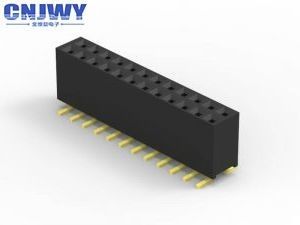

PCB Design Solution 1.0AMP Current Rating PCB Header Connector with Solder Termination and RoHs Certification

Product Description:

The PCB Header Connector, also known as a Box Header Connector, is a crucial component in electronic devices that facilitates the connection between a printed circuit board (PCB) and other electrical components. This particular product, with the model number ST127-XXXXXX, offers a reliable and efficient solution for various applications requiring a secure PCB connection.

One key attribute of the PCB Header Connector is its high insulation resistance of 1000MΩ minimum. This ensures that the electrical signals transmitted through the connector remain isolated and protected, reducing the risk of signal interference or leakage.

Designed for solder termination, this Female PCB Connector provides a stable and durable connection between the PCB and other components. The solder termination method ensures a secure attachment, preventing any loose connections or signal disruptions during operation.

With a current rating of 1.0Amp, the PCB Header Connector is capable of handling moderate electrical currents with ease, making it suitable for a wide range of electronic devices and applications. Whether used in consumer electronics, industrial equipment, or automotive systems, this connector delivers reliable performance under varying load conditions.

Featuring a range of pin options from 2 pins to 40 pins, this IC Socket Connector offers flexibility in design and compatibility with different PCB layouts. Whether you need a simple two-pin connection or a more complex multi-pin configuration, this connector can accommodate various requirements, making it versatile for diverse electronic projects.

Features:

• Product Name: PCB Header Connector
• Insulation Resistance: 1000MΩ Min
• Manufacturing Location: China
• Contact Material: Copper Alloy
• Mounting Type: SMD/SMT
• Model Number: ST127-XXXXXX

Technical Parameters:

Applications:

The JWY ST127-XXXXXX PCB Header Connector is a versatile and reliable electronic component suitable for a wide range of product application occasions and scenarios. This connector is commonly used in FPC Cable Connector, Cable Joint Connector, and Box Header Connector applications due to its high quality and performance.

Manufactured in China, this PCB header connector has obtained various certifications including UL, SGS, RoHs, and REACH, ensuring compliance with international standards for safety and environmental protection. With a minimum order quantity of 2Kpcs, the JWY ST127-XXXXXX connector offers flexibility for both small and large-scale projects.

When it comes to payment terms, customers have the option to choose between T/T and Western Union, making transactions convenient and secure. The price of the connector is open for negotiation, allowing for competitive pricing based on the quantity ordered.

With a supply ability of 100000pcs per day, customers can rely on the JWY connector for their production needs with quick turnaround times. The delivery time ranges from 7 to 15 working days, ensuring timely fulfillment of orders.

The JWY ST127-XXXXXX PCB Header Connector features insulation material made of PA6T UL 94-V0, providing excellent protection against heat and electrical currents. The mounting type is SMD/SMT, offering flexibility for different assembly processes.

With a pitch of 1.00mm (0.039'') and termination through soldering, this connector can handle a current rating of 1.0AMP, making it suitable for various electronic applications that require reliable power connections.

Packaged in PE/Tray/Tube/Tape/Reel packaging, the JWY PCB Header Connector is easy to handle and store, further enhancing its convenience for integration into different electronic devices and systems.
